Dwm::Ipv4TcpPacket Class Reference

Encapsulates a TCP packet, including the IP header. More...

#include <DwmIpv4TcpPacket.hh>

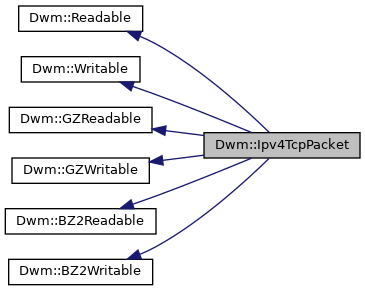

Inheritance diagram for Dwm::Ipv4TcpPacket:

Collaboration diagram for Dwm::Ipv4TcpPacket:

Public Member Functions
	Ipv4TcpPacket ()
	Constructor.
	Ipv4TcpPacket (uint8_t *ptr)
	Construct from a pointer to the start of IP header in a TCP packet. More...
	~Ipv4TcpPacket ()
	Destructor. If we own the underlying data, we free it.
const Ipv4PacketHeader &	IpHeader () const
	Returns a const reference to the IP header.
Ipv4PacketHeader &	IpHeader ()
	Returns a mutable reference to the IP header.
const Ipv4TcpHeader &	TcpHeader () const
	Returns a const refernece to the TCP header.
Ipv4TcpHeader &	TcpHeader ()
	Returns a mutable reference to the TCP header.
std::string	Payload () const
	Returns the payload as a string.
template<typename T >
bool	GetPayload (T &payload) const
	Copies the packet payload into payload. More...
template<typename T >
bool	SetPayload (const T &payload)
	Sets the packet payload to payload. More...
std::istream &	Read (std::istream &is)
	Reads from an istream. Returns the istream.
std::ostream &	Write (std::ostream &os) const
	Writes to an ostream. Returns the ostream.
ssize_t	Read (int fd)
	Reads from a file descriptor. More...
ssize_t	Write (int fd) const
	Writes to a file descriptor. More...
size_t	Read (FILE *f)
	Reads the packet from the given FILE pointer f. More...
size_t	Write (FILE *f) const
	Writes the packet to the given FILE pointer f. More...
int	Read (gzFile gzf)
	Reads the packet from the given gzFile gzf. More...
int	Write (gzFile gzf) const
	Writes the packet to the given gzFile gzf. More...
int	BZRead (BZFILE *bzf)
	Reads the packet from the given BZFILE bzf. More...
int	BZWrite (BZFILE *bzf) const
	Writes the packet to the given BZFILE bzf. More...
uint32_t	StreamedLength () const
	Returns the numbers of bytes that should be written if one of the Write() members is called. More...
bool	SendTo (int fd) const
	Sends the packet via the given descriptor fd. More...
bool	SendTo (Socket &s) const
	Sends the packet via the given Socket s. More...
Public Member Functions inherited from Dwm::Readable
virtual	~Readable ()
	destructor
Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.
Public Member Functions inherited from Dwm::GZReadable
virtual	~GZReadable ()
	destructor
Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Detailed Description

Encapsulates a TCP packet, including the IP header.

Constructor & Destructor Documentation

Ipv4TcpPacket()

Dwm::Ipv4TcpPacket::Ipv4TcpPacket

(

uint8_t *

ptr

)

Construct from a pointer to the start of IP header in a TCP packet.

We don't copy, so the caller still owns the memory at ptr.

Member Function Documentation

BZRead()

int Dwm::Ipv4TcpPacket::BZRead ( BZFILE *  bzf )

virtual

Reads the packet from the given BZFILE bzf.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::BZ2Readable.

BZWrite()

int Dwm::Ipv4TcpPacket::BZWrite ( BZFILE *  bzf ) const

virtual

Writes the packet to the given BZFILE bzf.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::BZ2Writable.

GetPayload()

template<typename T >

bool Dwm::Ipv4TcpPacket::GetPayload ( T &  payload ) const

inline

Copies the packet payload into payload.

Note that payload must be natively supported by Dwm::IO or a type derived from DWm::Readable. Returns true on success, false on failure.

Here is the call graph for this function:

Read() [1/3]

ssize_t Dwm::Ipv4TcpPacket::Read ( int  fd )

virtual

Reads from a file descriptor.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::Readable.

Read() [2/3]

size_t Dwm::Ipv4TcpPacket::Read ( FILE *  f )

virtual

Reads the packet from the given FILE pointer f.

Returns 1 on success, 0 on failure (fread() semantics).

Implements Dwm::Readable.

Read() [3/3]

int Dwm::Ipv4TcpPacket::Read ( gzFile  gzf )

virtual

Reads the packet from the given gzFile gzf.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::GZReadable.

SendTo() [1/2]

bool Dwm::Ipv4TcpPacket::SendTo

(

int

fd

)

const

Sends the packet via the given descriptor fd.

Returns true on success, false on failure.

SendTo() [2/2]

bool Dwm::Ipv4TcpPacket::SendTo

(

Socket &

s

)

const

Sends the packet via the given Socket s.

Returns true on success, false on failure.

SetPayload()

template<typename T >

bool Dwm::Ipv4TcpPacket::SetPayload ( const T &  payload )

inline

Sets the packet payload to payload.

Note that payload must be natively supported by Dwm::IO or a type derived from Dwm::Writable. Returns true on success, false on failure.

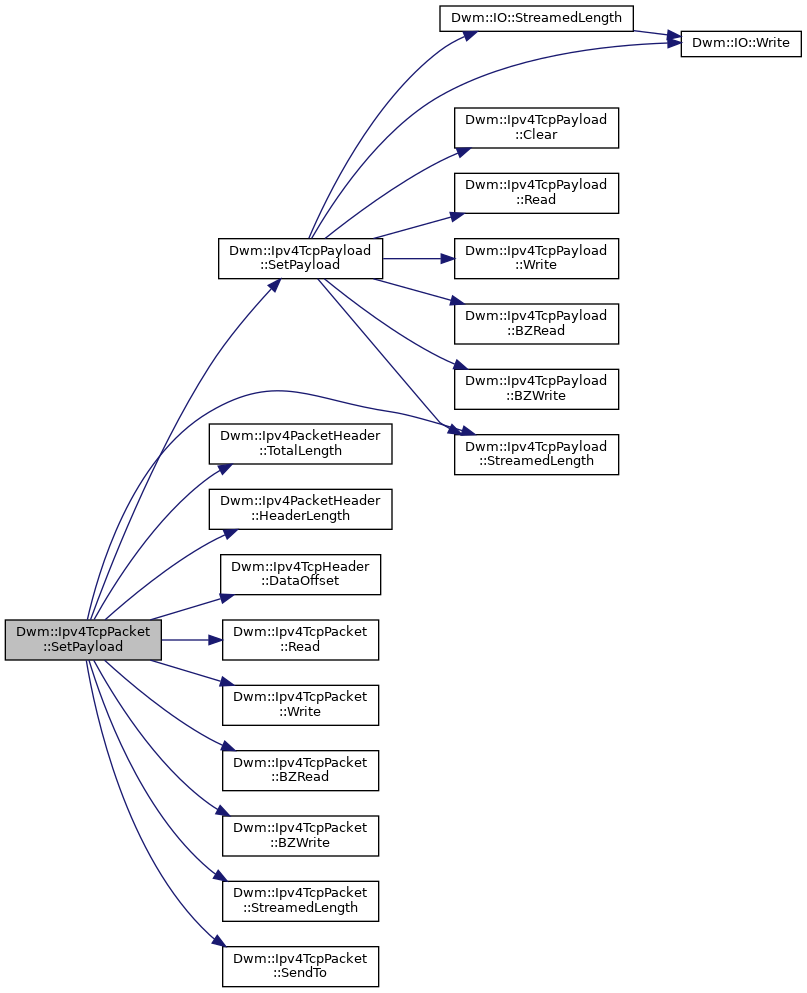

Here is the call graph for this function:

StreamedLength()

uint32_t Dwm::Ipv4TcpPacket::StreamedLength ( ) const

virtual

Returns the numbers of bytes that should be written if one of the Write() members is called.

Implements Dwm::Writable.

Write() [1/3]

ssize_t Dwm::Ipv4TcpPacket::Write ( int  fd ) const

virtual

Writes to a file descriptor.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::Writable.

Write() [2/3]

size_t Dwm::Ipv4TcpPacket::Write ( FILE *  f ) const

virtual

Writes the packet to the given FILE pointer f.

Returns 1 on success, 0 on failure (fwrite() semantics).

Implements Dwm::Writable.

Write() [3/3]

int Dwm::Ipv4TcpPacket::Write ( gzFile  gzf ) const

virtual

Writes the packet to the given gzFile gzf.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::GZWritable.

---

The documentation for this class was generated from the following file:

• DwmIpv4TcpPacket.hh
