Dwm::Ipv4PacketHeader Class Reference

Encapsulates an IPv4 packet header. More...

#include <DwmIpv4PacketHeader.hh>

Inheritance diagram for Dwm::Ipv4PacketHeader:

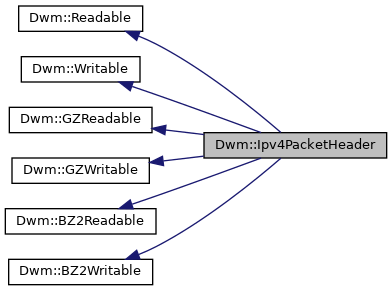

Collaboration diagram for Dwm::Ipv4PacketHeader:

Public Member Functions
	Ipv4PacketHeader ()
	Constructor. The new object will own the underlying memory.
	Ipv4PacketHeader (const Ipv4PacketHeader &ipHeader)
	Copy constructor.
	Ipv4PacketHeader (const struct ip &ip)
	Construct from a struct ip. More...
	Ipv4PacketHeader (struct ip *ip)
	Construct from a pointer to a struct ip. More...
	~Ipv4PacketHeader ()
	Destructor. More...
Ipv4PacketHeader &	operator= (const Ipv4PacketHeader &ipHeader)
	operator =
bool	operator== (const Ipv4PacketHeader &ipHeader) const
	operator ==
void	Set (const struct ip &ip)
	Copy the contents of ip into the object.
uint8_t	HeaderLength () const
	Returns the IP header length.
uint8_t	HeaderLength (uint8_t headerLength)
	Sets and returns the IP header length.
uint8_t	TypeOfService () const
	Returns the type-of-service.
uint8_t	TypeOfService (uint8_t typeOfService)
	Sets and returns the type-of-service.
uint16_t	TotalLength () const
	Returns the total length field in host byte order.
uint16_t	TotalLength (uint16_t totalLength)
	Sets and returns total length field in host byte order.
uint16_t	Id () const
	Returns the IP ID field in host byte order.
uint16_t	Id (uint16_t id)
	Sets and returns the IP ID field in host byte order.
uint16_t	FragmentOffset () const
	Returns the fragment offset field in host byte order.
uint16_t	FragmentOffset (uint16_t fragmentOffset)
	Sets and returns the fragment offset field in host byte order.
uint8_t	TimeToLive () const
	Returns the time-to-live field.
uint8_t	TimeToLive (uint8_t timeToLive)
	Sets and returns the time-to-live field.
uint8_t	Protocol () const
	Returns the protocol field.
uint8_t	Protocol (uint8_t protocol)
	Sets and returns the protocol field.
uint16_t	Checksum () const
	Returns the checksum field in host byte order.
Ipv4Address	SourceAddress () const
	Returns the source IP address.
Ipv4Address	SourceAddress (const Ipv4Address &sourceAddress)
	Sets and returns the source IP address.
Ipv4Address	DestinationAddress () const
	Returns the destination IP address.
Ipv4Address	DestinationAddress (const Ipv4Address &destinationAddress)
	Sets and returns the destination IP address.
void	SetChecksum ()
	Computes and stores the IP header checksum.
std::istream &	Read (std::istream &is)
	Reads the header from an istream. Returns the istream.
std::ostream &	Write (std::ostream &os) const
	Writes the header to an ostream. Returns the ostream.
ssize_t	Read (int fd)
	Reads the header from a file descriptor. More...
ssize_t	Write (int fd) const
	Writes the header to a file descriptor. More...
size_t	Read (FILE *f)
	Reads the header from a FILE. Returns 1 on success, 0 on failure.
size_t	Write (FILE *f) const
	Writes the header to a FILE. Returns 1 on success, 0 on failure.
uint32_t	StreamedLength () const
	Returns the number of bytes that should be written if we called one of the Write() members. More...
int	Read (gzFile gzf)
	Reads the header from a gzFile. More...
int	Write (gzFile gzf) const
	Writes the header to a gzFile. More...
int	BZRead (BZFILE *bzf)
	Reads the header from a BZFILE. More...
int	BZWrite (BZFILE *bzf) const
	Writes the header to a BZFILE. More...
std::ostream &	PrintXML (std::ostream &os, const std::string &pre="") const
	Prints the header is pseudo-XML. More...
uint8_t *	End () const
Public Member Functions inherited from Dwm::Readable
virtual	~Readable ()
	destructor
Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.
Public Member Functions inherited from Dwm::GZReadable
virtual	~GZReadable ()
	destructor
Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Detailed Description

Encapsulates an IPv4 packet header.

Constructor & Destructor Documentation

Ipv4PacketHeader() [1/2]

Dwm::Ipv4PacketHeader::Ipv4PacketHeader

(

const struct ip &

ip

)

Construct from a struct ip.

The new object will own the underlying memory.

Ipv4PacketHeader() [2/2]

Dwm::Ipv4PacketHeader::Ipv4PacketHeader

(

struct ip *

ip

)

Construct from a pointer to a struct ip.

The caller will still own the memory at ip, and ip must remain unfreed while the new Ipv4PacketHeader object is in use.

~Ipv4PacketHeader()

Dwm::Ipv4PacketHeader::~Ipv4PacketHeader

(

)

Destructor.

If the underlying memory is owned by the object, it will be freed.

Member Function Documentation

BZRead()

int Dwm::Ipv4PacketHeader::BZRead ( BZFILE *  bzf )

virtual

Reads the header from a BZFILE.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::BZ2Readable.

BZWrite()

int Dwm::Ipv4PacketHeader::BZWrite ( BZFILE *  bzf ) const

virtual

Writes the header to a BZFILE.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::BZ2Writable.

PrintXML()

std::ostream& Dwm::Ipv4PacketHeader::PrintXML	(	std::ostream &	os,
		const std::string &	pre = ""
	)		const

Prints the header is pseudo-XML.

Each line will be prefixed by pre.

Read() [1/2]

ssize_t Dwm::Ipv4PacketHeader::Read ( int  fd )

virtual

Reads the header from a file descriptor.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::Readable.

Read() [2/2]

int Dwm::Ipv4PacketHeader::Read ( gzFile  gzf )

virtual

Reads the header from a gzFile.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::GZReadable.

StreamedLength()

uint32_t Dwm::Ipv4PacketHeader::StreamedLength ( ) const

virtual

Returns the number of bytes that should be written if we called one of the Write() members.

Implements Dwm::Writable.

Write() [1/2]

ssize_t Dwm::Ipv4PacketHeader::Write ( int  fd ) const

virtual

Writes the header to a file descriptor.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::Writable.

Write() [2/2]

int Dwm::Ipv4PacketHeader::Write ( gzFile  gzf ) const

virtual

Writes the header to a gzFile.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::GZWritable.

---

The documentation for this class was generated from the following file:

• DwmIpv4PacketHeader.hh
