Dwm::Ipv4Address Class Reference

This class encapsulates an IPv4 address. More...

#include <DwmIpv4Address.hh>

Inheritance diagram for Dwm::Ipv4Address:

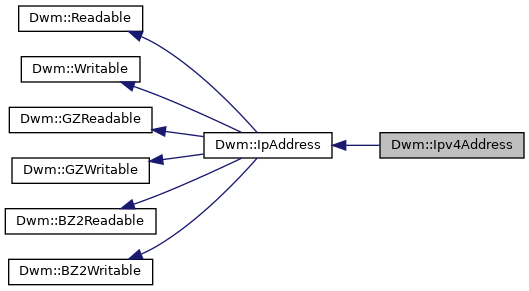

Collaboration diagram for Dwm::Ipv4Address:

Public Member Functions
	Ipv4Address ()
	Constructor.
	Ipv4Address (ipv4addr_t addr)
	Construct from an ipv4addr_t (32-bit value in network byte order).
	Ipv4Address (const std::string &dottedAddr)
	Construct from a dotted-decimal string.
ipv4addr_t	Raw () const
	Returns an ipv4addr_t representation (32-bit value in network byte order). More...
	operator std::string () const
	Returns a dotted-decimal string representation.
bool	IsV6 () const
bool	operator< (const Ipv4Address &addr) const
	less-than operator.
bool	operator> (const Ipv4Address &addr) const
	Greater-than operator.
bool	operator>= (const Ipv4Address &addr) const
	Greater than or equal-to operator.
bool	operator<= (const Ipv4Address &addr) const
	Less-than or equal-to operator.
bool	operator== (const Ipv4Address &addr) const
	Equal-to operator.
bool	operator!= (const Ipv4Address &addr) const
	Not-equal-to operator.
Ipv4Address &	operator&= (const Ipv4Address &mask)
	Mask operator.
Ipv4Address	operator++ (int)
	Post-increment operator.
Ipv4Address &	operator++ ()
	Pre-increment operator.
Ipv4Address	operator-- (int)
	Post-decrement operator.
Ipv4Address &	operator-- ()
	Pre-decrement operator.
Ipv4Address &	operator-= (uint32_t i)
	-= operator. More...
Ipv4Address &	operator+= (uint32_t i)
	+= operator. More...
bool	BitIsSet (int8_t bit) const
int	GetBit (int bit) const
uint32_t	StreamedLength () const
	Returns the number of bytes that would be written if we called one of the Write() members. More...
std::istream &	Read (std::istream &is)
	Reads from an istream. Returns the istream.
std::ostream &	Write (std::ostream &os) const
	Writes to an ostream. Returns the ostream.
ssize_t	Read (int fd)
	Reads from a file descriptor. More...
ssize_t	Write (int fd) const
	Writes to a file descriptor. More...
size_t	Read (FILE *f)
	Reads from a FILE pointer. Returns 1 on success, 0 on failure.
size_t	Write (FILE *f) const
	Writes to a FILE pointer. Returns 1 on success, 0 on failure.
int	Read (gzFile gzf)
	Reads from a gzFile. More...
int	Write (gzFile gzf) const
	Writes to a gzFile. More...
int	BZRead (BZFILE *bzf)
	Reads from a BZFILE pointer. More...
int	BZWrite (BZFILE *bzf) const
	Writes to a BZFILE pointer. More...
uint32_t	IpSum () const
	Returns the partial sum of the IP address, as would be used when calculating the IP header checksum or UDP checksum (as part of the 'pseudo-header' used for UDP checksums). More...
Public Member Functions inherited from Dwm::Readable
virtual	~Readable ()
	destructor
Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.
Public Member Functions inherited from Dwm::GZReadable
virtual	~GZReadable ()
	destructor
Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Static Public Member Functions
static uint8_t	MaxKeyBits ()

Protected Attributes
uint32_t	_addr

Friends
std::ostream &	operator<< (std::ostream &os, const Ipv4Address &addr)
	Prints an Ipv4Address to an ostream in human-readable form.
Ipv4Address	operator& (const Ipv4Address &addr, const Ipv4Address &mask)

Detailed Description

This class encapsulates an IPv4 address.

Member Function Documentation

BZRead()

int Dwm::Ipv4Address::BZRead ( BZFILE *  bzf )

virtual

Reads from a BZFILE pointer.

Returns the number of bytes read (4 on success).

Implements Dwm::BZ2Readable.

BZWrite()

int Dwm::Ipv4Address::BZWrite ( BZFILE *  bzf ) const

virtual

Writes to a BZFILE pointer.

Returns the number of bytes written (4 on success).

Implements Dwm::BZ2Writable.

IpSum()

uint32_t Dwm::Ipv4Address::IpSum

(

)

const

Returns the partial sum of the IP address, as would be used when calculating the IP header checksum or UDP checksum (as part of the 'pseudo-header' used for UDP checksums).

operator+=()

Ipv4Address& Dwm::Ipv4Address::operator+= ( uint32_t  i )

inline

+= operator.

Protects against roll-over (will not increment past 255.255.255.255). Note that the right hand side must be in host byte order.

Here is the call graph for this function:

operator-=()

Ipv4Address& Dwm::Ipv4Address::operator-= ( uint32_t  i )

inline

-= operator.

Protects against roll-under (will not decrement past 0.0.0.0). Note that the right hand side must be in host byte order.

Raw()

ipv4addr_t Dwm::Ipv4Address::Raw ( ) const

inline

Returns an ipv4addr_t representation (32-bit value in network byte order).

Read() [1/2]

ssize_t Dwm::Ipv4Address::Read ( int  fd )

virtual

Reads from a file descriptor.

Returns the number of bytes read (4 on success).

Implements Dwm::Readable.

Read() [2/2]

int Dwm::Ipv4Address::Read ( gzFile  gzf )

virtual

Reads from a gzFile.

Returns the number of bytes read (4 on success).

Implements Dwm::GZReadable.

StreamedLength()

uint32_t Dwm::Ipv4Address::StreamedLength ( ) const

virtual

Returns the number of bytes that would be written if we called one of the Write() members.

Implements Dwm::Writable.

Write() [1/2]

ssize_t Dwm::Ipv4Address::Write ( int  fd ) const

virtual

Writes to a file descriptor.

Returns the number of bytes written (4 on success).

Implements Dwm::Writable.

Write() [2/2]

int Dwm::Ipv4Address::Write ( gzFile  gzf ) const

virtual

Writes to a gzFile.

Returns the number of bytes written (4 on success).

Implements Dwm::GZWritable.

---

The documentation for this class was generated from the following file:

• DwmIpv4Address.hh
