Encapsulates a TCP header. More...

#include <DwmIpv4TcpHeader.hh>

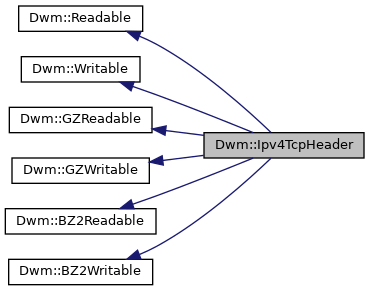

Inheritance diagram for Dwm::Ipv4TcpHeader:

[legend]

Collaboration diagram for Dwm::Ipv4TcpHeader:

[legend]

Public Member Functions
	Ipv4TcpHeader ()
	Constructor.

	Ipv4TcpHeader (const Ipv4PacketHeader &ipHeader)
	Construct from an Ipv4PacketHeader which points at the IP header in a TCP packet. More...

	Ipv4TcpHeader (const Ipv4TcpHeader &tcpHeader)
	Copy constructor.

	Ipv4TcpHeader (struct tcphdr *tcpHdr)
	Construct from a pointer to a struct tcphdr. More...

	Ipv4TcpHeader (const struct tcphdr &tcpHdr)
	Construct by copying from a struct tcphdr.

Ipv4TcpHeader &	operator= (const Ipv4TcpHeader &tcpHeader)
	operator =

	~Ipv4TcpHeader ()
	Destructor.

uint16_t	SourcePort () const
	Returns the source port.

uint16_t	SourcePort (uint16_t port)
	Sets and returns the source port.

uint16_t	DestinationPort () const
	Returns the destination port.

uint16_t	DestinationPort (uint16_t port)
	Sets and returns the destination port.

uint32_t	SequenceNumber () const
	Returns the sequence number.

uint32_t	SequenceNumber (uint32_t seq)
	Sets and returns the sequence number.

uint32_t	AckNumber () const
	Returns the ACK nuber.

uint32_t	AckNumber (uint32_t ack)
	Sets and returns the ACK number.

uint8_t	DataOffset () const
	The number of 32 bit words in the TCP header. More...

uint8_t	DataOffset (uint8_t offset)
	Sets the number of 32 bit words in the TCP header. More...

uint8_t	Flags () const
	Returns the flags.

uint8_t	Flags (uint8_t flags)
	Sets and returns the flags.

uint16_t	Window () const
	Returns the window.

uint16_t	Window (uint16_t window)
	Sets and returns the window.

uint16_t	Checksum () const
	Returns the checksum.

void	SetChecksum (const Ipv4PacketHeader &ipHeader, const std::string &data)
	Sets the checksum, for which we need the IP header and the data.

uint16_t	UrgentPointer () const
	Returns the urgent pointer.

uint16_t	UrgentPointer (uint16_t urgent)
	Sets the urgent pointer.

std::istream &	Read (std::istream &is)
	Reads from an istream. Returns the istream.

std::ostream &	Write (std::ostream &os) const
	Writes to an ostream. Returns the ostream.

ssize_t	Read (int fd)
	Reads from the given file descriptor `fd`. More...

ssize_t	Write (int fd) const
	Writes to the given file descriptor `fd`. More...

size_t	Read (FILE *f)
	Reads from the given FILE pointer `f`. More...

size_t	Write (FILE *f) const
	Writes to the given FILE pointer `f`. More...

int	Read (gzFile gzf)
	Reads from the given gzFile `gzf`. More...

int	Write (gzFile gzf) const
	Writes to the given gzFile `gzf`. More...

int	BZRead (BZFILE *bzf)
	Reads from the given BZFILE pointer `bzf`. More...

int	BZWrite (BZFILE *bzf) const
	Writes to the given BZFILE pointer `bzf`. More...

uint32_t	StreamedLength () const
	Returns the number of bytes that would be written if one of the Write() members were called. More...

bool	operator== (const Ipv4TcpHeader &tcpHeader) const
	operator ==

std::ostream &	PrintXML (std::ostream &os, const std::string &pre="") const
	Prints the TCP header to an ostream as pseudo-XML. More...

uint8_t *	End () const
	Returns the address of the end of the TCP header. More...

Public Member Functions inherited from Dwm::Readable
virtual	~Readable ()
	destructor

Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.

Public Member Functions inherited from Dwm::GZReadable
virtual	~GZReadable ()
	destructor

Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Detailed Description

Encapsulates a TCP header.

Constructor & Destructor Documentation

◆ Ipv4TcpHeader() [1/2]

Dwm::Ipv4TcpHeader::Ipv4TcpHeader ( const Ipv4PacketHeader & ipHeader )

Construct from an Ipv4PacketHeader which points at the IP header in a TCP packet.

DO NOT FREE THE UNDERLYING MEMORY WHILE THE Ipv4TcpHeader IS STILL IN USE!

◆ Ipv4TcpHeader() [2/2]

Dwm::Ipv4TcpHeader::Ipv4TcpHeader ( struct tcphdr * tcpHdr )

Construct from a pointer to a struct tcphdr.

We don't copy, so don't free the data into which tcpHdr points until after the Ipv4TcpHeader is no longer in use.

Member Function Documentation

◆ BZRead()

int Dwm::Ipv4TcpHeader::BZRead ( BZFILE * bzf )

virtual

Reads from the given BZFILE pointer bzf.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::BZ2Readable.

◆ BZWrite()

int Dwm::Ipv4TcpHeader::BZWrite ( BZFILE * bzf ) const

virtual

Writes to the given BZFILE pointer bzf.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::BZ2Writable.

◆ DataOffset() [1/2]

uint8_t Dwm::Ipv4TcpHeader::DataOffset ( ) const

The number of 32 bit words in the TCP header.

This indicates where the data begins. The TCP header (even one including options) is an integral number of 32 bits long.

Note: since the offset field is only 4 bits, a TCP header can't be more than 60 bytes long (15 * 4).

◆ DataOffset() [2/2]

uint8_t Dwm::Ipv4TcpHeader::DataOffset ( uint8_t offset )

Sets the number of 32 bit words in the TCP header.

This indicates where the data begins. The TCP header (even one including options) is an integral number of 32 bits long.

Note: since the offset field is only 4 bits, a TCP header can't be more than 60 bytes long (15 * 4).

◆ End()

uint8_t* Dwm::Ipv4TcpHeader::End ( ) const

Returns the address of the end of the TCP header.

If our TCP header points into an existing TCP packet, this will be the first byte of the user data.

◆ PrintXML()

std::ostream& Dwm::Ipv4TcpHeader::PrintXML	(	std::ostream &	os,
		const std::string &	pre = `""`
	)		const

Prints the TCP header to an ostream as pseudo-XML.

Each line will be prefixed with pre.

◆ Read() [1/3]

ssize_t Dwm::Ipv4TcpHeader::Read ( int fd )

virtual

Reads from the given file descriptor fd.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::Readable.

◆ Read() [2/3]

size_t Dwm::Ipv4TcpHeader::Read ( FILE * f )

virtual

Reads from the given FILE pointer f.

Returns 1 on success, 0 on failure (fread() semantics).

Implements Dwm::Readable.

◆ Read() [3/3]

int Dwm::Ipv4TcpHeader::Read ( gzFile gzf )

virtual

Reads from the given gzFile gzf.

Returns the number of bytes read on success, -1 on failure.

Implements Dwm::GZReadable.

◆ StreamedLength()

uint32_t Dwm::Ipv4TcpHeader::StreamedLength ( ) const

virtual

Returns the number of bytes that would be written if one of the Write() members were called.

Implements Dwm::Writable.

◆ Write() [1/3]

ssize_t Dwm::Ipv4TcpHeader::Write ( int fd ) const

virtual

Writes to the given file descriptor fd.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::Writable.

◆ Write() [2/3]

size_t Dwm::Ipv4TcpHeader::Write ( FILE * f ) const

virtual

Writes to the given FILE pointer f.

Returns 1 on success, 0 on failure (fwrite() semantics).

Implements Dwm::Writable.

◆ Write() [3/3]

int Dwm::Ipv4TcpHeader::Write ( gzFile gzf ) const

virtual

Writes to the given gzFile gzf.

Returns the number of bytes written on success, -1 on failure.

Implements Dwm::GZWritable.

The documentation for this class was generated from the following file:

DwmIpv4TcpHeader.hh
