Dwm::HostPinger Class Reference

Encapsulates a 'pinger', which can 'ping' one or more hosts using TCP or ICMP. More...

#include <DwmHostPinger.hh>

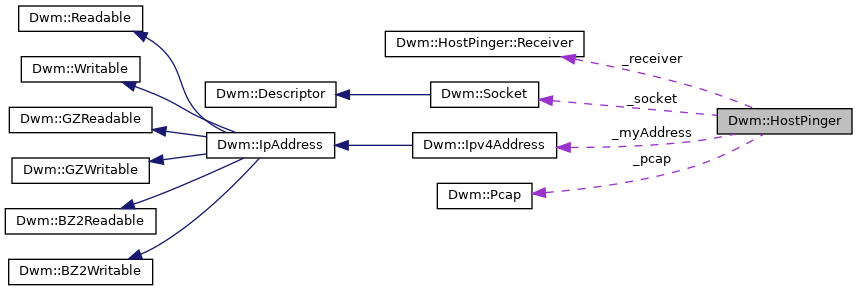

Collaboration diagram for Dwm::HostPinger:
Collaboration graph
[legend]

Classes

class  Receiver
 Data callback interface. More...


Public Member Functions

 HostPinger (uint16_t identifier, const std::string &device="lo0")
 Construct with the given identifier (normally getpid() & 0xFFFF).

bool AddDestination (const PingDestination &destination)
 Adds a destination. Returns true on success.

uint16_t PacketRate () const
 Returns the packet rate. More...

uint16_t PacketRate (uint16_t pps)
 Sets and returns the packet rate in packets/sec. More...

uint32_t PacketsSent (const PingDestination &destination) const
 Returns the number of packets sent to the given destination.

uint32_t PacketsReceived (const PingDestination &destination) const
 Returns the number of packets received from the given destination. More...

float PacketLoss (const PingDestination &destination) const
 Returns the percent packet loss for the given destination.

bool Start (int count=0)
 Starts the pinger. Returns true on success.

bool Stop ()
 Stops the pinger. Returns true on success.

bool Outstanding () const
 Returns true if we have not yet received replies for some of the packets we sent. More...


Static Public Member Functions

static Receiver * GetReceiver ()
 Returns the Receiver registered to receive ping data.

static Receiver * SetReceiver (Receiver *receiver)
 Registers receiver to receive ping data.


Protected Types

typedef std::map< PingDestination, PingDestinationEntry > DestinationMap


Protected Member Functions

bool StopWatcher ()

bool StopSender ()

void GetTcpPacket (const PingDestination &destination, uint16_t seq, std::string &s)

void RunWatcher ()

void RunSender ()


Static Protected Member Functions

static void PcapCallback (uint8_t *user, const struct pcap_pkthdr *pchdr, const uint8_t *pkt)


Protected Attributes

std::string _device

Ipv4Address _myAddress

std::thread _watcherThread

std::thread _senderThread

std::mutex _watcherReadyMutex

std::unique_lock< std::mutex > _watcherReadyLock

std::condition_variable _watcherReady

bool _runSender

bool _runWatcher

uint16_t _identifier

Socket _socket

uint16_t _packetRate

Pcap _pcap

int _count

bool _forever

DestinationMap _destinations


Static Protected Attributes

static Receiver * _receiver


Detailed Description

Encapsulates a 'pinger', which can 'ping' one or more hosts using TCP or ICMP.

Member Function Documentation

◆ Outstanding()

bool Dwm::HostPinger::Outstanding ( ) const

Returns true if we have not yet received replies for some of the packets we sent.

◆ PacketRate() [1/2]

uint16_t Dwm::HostPinger::PacketRate ( ) const

Returns the packet rate.

This is divided across all destinations; if the packet rate is 10 and there are 5 destinations, each destination will get 10/5 == 2 packets/sec.

◆ PacketRate() [2/2]

uint16_t Dwm::HostPinger::PacketRate ( uint16_t  pps)

Sets and returns the packet rate in packets/sec.

This is divided across all destinations; if the packet rate is 10 and there are 5 destinations, each destination will get 10/5 == 2 packets/sec.

◆ PacketsReceived()

uint32_t Dwm::HostPinger::PacketsReceived ( const PingDestination &  destination) const

Returns the number of packets received from the given destination.

The documentation for this class was generated from the following file:
