Common interface for an IPv4 destination we wish to ping with ICMP or TCP. More...

#include <DwmPingDestination.hh>

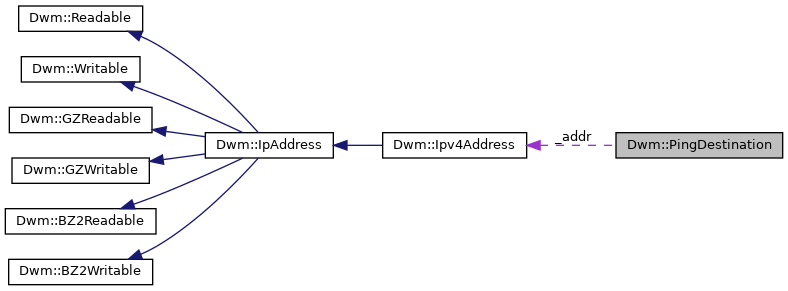

Collaboration diagram for Dwm::PingDestination:

[legend]

Public Member Functions
	PingDestination ()
	Constructor.

	PingDestination (const std::string &destination)
	Construct from a string of the form 'a.b.c.d:n' where a.b.c.d is the IP address and n is the port number. More...

	PingDestination (const Ipv4Address &addr, uint16_t port=0)
	Construct from an IP address (for an ICMP destination), or an IP address and port number (for a TCP destination). More...

const Ipv4Address &	Address () const
	Returns the destination IP address.

const Ipv4Address &	Address (const Ipv4Address &address)
	Sets and returns the destination IP address.

uint16_t	Port () const
	Returns the port number (0 for ICMP).

const std::string &	Hostname () const
	Returns the hostname (an empty string if it was not set).

const std::string &	Hostname (const std::string &hostname)
	Sets and returns the hostname.

bool	SendTo (Socket &socket, const Ipv4Address &myAddress, uint16_t identifier) const
	Sends a 'ping' to the destination. More...

bool	operator< (const PingDestination &pd) const
	operator <

bool	operator== (const PingDestination &pd) const
	operator ==

virtual	operator std::string () const
	Returns the destination as a string (IP address in dotted-decimal for an ICMP destination, IP address and port separated by a ':' for a TCP destination). More...

Protected Member Functions
void	GetPacket (std::string &packet, const Ipv4Address &myAddress, uint16_t identifier) const

void	GetIcmpPacket (std::string &packet, const Ipv4Address &myAddress, uint16_t identifier) const

void	GetTcpPacket (std::string &packet, const Ipv4Address &myAddress, uint16_t identifier) const

Protected Attributes
Ipv4Address	_addr

uint16_t	_port

std::string	_hostname

bool	_primed

uint16_t	_sequenceNumber

Friends
std::ostream &	operator<< (std::ostream &os, const PingDestination &pd)
	Prints a PingDestination to an ostream in human-readable form.

Detailed Description

Common interface for an IPv4 destination we wish to ping with ICMP or TCP.

Constructor & Destructor Documentation

◆ PingDestination() [1/2]

Dwm::PingDestination::PingDestination ( const std::string & destination )

Construct from a string of the form 'a.b.c.d:n' where a.b.c.d is the IP address and n is the port number.

If only an IP address is given, we will use ICMP to probe the destination. If a non-zero port number is given, we will use TCP to probe the destination.

◆ PingDestination() [2/2]

Dwm::PingDestination::PingDestination	(	const Ipv4Address &	addr,
		uint16_t	port = `0`
	)

Construct from an IP address (for an ICMP destination), or an IP address and port number (for a TCP destination).

Member Function Documentation

◆ operator std::string()

virtual Dwm::PingDestination::operator std::string ( ) const

virtual

Returns the destination as a string (IP address in dotted-decimal for an ICMP destination, IP address and port separated by a ':' for a TCP destination).

◆ SendTo()

bool Dwm::PingDestination::SendTo	(	Socket &	socket,
		const Ipv4Address &	myAddress,
		uint16_t	identifier
	)		const

Sends a 'ping' to the destination.

For ICMP, sends an echo request. For TCP, sends a pure ACK.

The documentation for this class was generated from the following file:

DwmPingDestination.hh
