Encapsulates an IPv4 UDP header. More...

#include <DwmIpv4UdpHeader.hh>

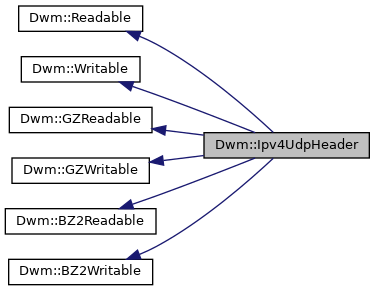

Inheritance diagram for Dwm::Ipv4UdpHeader:

[legend]

Collaboration diagram for Dwm::Ipv4UdpHeader:

[legend]

Public Member Functions
	Ipv4UdpHeader ()
	Constructor. The new object will own the underlying memory.

	Ipv4UdpHeader (const Ipv4PacketHeader &ipHeader)
	Construct from the given IPv4 packet header `ipHeader`.

	Ipv4UdpHeader (const Ipv4UdpHeader &udpHeader)
	Copy constructor.

	Ipv4UdpHeader (struct udphdr *udpHdr)
	Construct from a pointer to an existing udphdr. More...

	Ipv4UdpHeader (const struct udphdr &udpHdr)
	Constructor. Copies the contents of `udpHdr`. The new object will.

Ipv4UdpHeader &	operator= (const Ipv4UdpHeader &udpHeader)
	operator =

	~Ipv4UdpHeader ()
	Destructor. More...

uint16_t	SourcePort () const
	Returns the UDP source port in host byte order.

uint16_t	SourcePort (uint16_t port)
	Sets the UDP source port to `port`, which must be in host byte order. More...

uint16_t	DestinationPort () const
	Returns the UDP destination port in host byte order.

uint16_t	DestinationPort (uint16_t port)
	Sets the UDP destination port to `port`, which must be in host byte order. More...

uint16_t	UdpLength () const
	Returns the UDP length in host byte order. More...

uint16_t	UdpLength (uint16_t udpLength)
	Sets and returns the UDP length in host byte order. More...

uint16_t	UdpChecksum () const
	Returns the UDP checksum field.

void	SetUdpChecksum (const Ipv4PacketHeader &ipHeader, const std::string &data)
	Calculates and sets the UDP checksum field, which requires the UDP payload `data` and some fields from the IP header. More...

void	SetUdpChecksum (const Ipv4PacketHeader &ipHeader, const Ipv4UdpPayload &data)
	Calculates and sets the UDP checksum field, which requires the UDP payload `data` and some fields from the IP header. More...

uint8_t *	End () const

std::istream &	Read (std::istream &is)
	Reads the UDP header from an istream. Returns the istream.

std::ostream &	Write (std::ostream &os) const
	Writes the UDP header to an ostream. Returns the ostream.

ssize_t	Read (int fd)
	Reads the UDP header from a file descriptor. More...

ssize_t	Write (int fd) const
	Writes the UDP header to a file descriptor. More...

size_t	Read (FILE *f)
	Reads the UDP header from a FILE. More...

size_t	Write (FILE *f) const
	Writes the UDP header to a FILE. More...

uint32_t	StreamedLength () const
	Returns the number of bytes that would be written if we called one of the Write() members. More...

int	Read (gzFile gzf)
	Reads the UDP header from a gzFile. More...

int	Write (gzFile gzf) const
	Writes the UDP header to a gzFile. More...

int	BZRead (BZFILE *bzf)
	Reads the UDP header from a BZFILE. More...

int	BZWrite (BZFILE *bzf) const
	Writes the UDP header to a BZFILE. More...

bool	operator== (const Ipv4UdpHeader &udpHeader) const
	operator ==

std::ostream &	PrintXML (std::ostream &os, const std::string &pre="") const
	Print the UDP header to an ostream in pseudo-XML, with each line prefixed by `pre`. More...

Public Member Functions inherited from Dwm::Readable
virtual	~Readable ()
	destructor

Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.

Public Member Functions inherited from Dwm::GZReadable
virtual	~GZReadable ()
	destructor

Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Detailed Description

Encapsulates an IPv4 UDP header.

Constructor & Destructor Documentation

◆ Ipv4UdpHeader()

Dwm::Ipv4UdpHeader::Ipv4UdpHeader ( struct udphdr * udpHdr )

Construct from a pointer to an existing udphdr.

We will not copy the contents of udpHdr, it will continue to be owned by the caller. This is useful when the caller wishes to use this class for manipulating an existing udphdr.

◆ ~Ipv4UdpHeader()

Dwm::Ipv4UdpHeader::~Ipv4UdpHeader ( )

Destructor.

If the object owns the underlying memory, the underlying memory will be freed.

Member Function Documentation

◆ BZRead()

int Dwm::Ipv4UdpHeader::BZRead ( BZFILE * bzf )

virtual

Reads the UDP header from a BZFILE.

Returns the number of bytes read on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::BZ2Readable.

◆ BZWrite()

int Dwm::Ipv4UdpHeader::BZWrite ( BZFILE * bzf ) const

virtual

Writes the UDP header to a BZFILE.

Returns the number of bytes written on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::BZ2Writable.

◆ DestinationPort()

uint16_t Dwm::Ipv4UdpHeader::DestinationPort ( uint16_t port )

Sets the UDP destination port to port, which must be in host byte order.

Returns the UDP destination port in host byte order.

◆ PrintXML()

std::ostream& Dwm::Ipv4UdpHeader::PrintXML	(	std::ostream &	os,
		const std::string &	pre = `""`
	)		const

Print the UDP header to an ostream in pseudo-XML, with each line prefixed by pre.

Returns the ostream.

◆ Read() [1/3]

ssize_t Dwm::Ipv4UdpHeader::Read ( int fd )

virtual

Reads the UDP header from a file descriptor.

Returns the number of bytes read on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::Readable.

◆ Read() [2/3]

size_t Dwm::Ipv4UdpHeader::Read ( FILE * f )

virtual

Reads the UDP header from a FILE.

Returns 1 on success, 0 on failure.

Implements Dwm::Readable.

◆ Read() [3/3]

int Dwm::Ipv4UdpHeader::Read ( gzFile gzf )

virtual

Reads the UDP header from a gzFile.

Returns the number of bytes read on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::GZReadable.

◆ SetUdpChecksum() [1/2]

void Dwm::Ipv4UdpHeader::SetUdpChecksum	(	const Ipv4PacketHeader &	ipHeader,
		const std::string &	data
	)

Calculates and sets the UDP checksum field, which requires the UDP payload data and some fields from the IP header.

◆ SetUdpChecksum() [2/2]

void Dwm::Ipv4UdpHeader::SetUdpChecksum	(	const Ipv4PacketHeader &	ipHeader,
		const Ipv4UdpPayload &	data
	)

Calculates and sets the UDP checksum field, which requires the UDP payload data and some fields from the IP header.

◆ SourcePort()

uint16_t Dwm::Ipv4UdpHeader::SourcePort ( uint16_t port )

Sets the UDP source port to port, which must be in host byte order.

Returns the UDP source port in host byte order.

◆ StreamedLength()

uint32_t Dwm::Ipv4UdpHeader::StreamedLength ( ) const

virtual

Returns the number of bytes that would be written if we called one of the Write() members.

Implements Dwm::Writable.

◆ UdpLength() [1/2]

uint16_t Dwm::Ipv4UdpHeader::UdpLength ( ) const

Returns the UDP length in host byte order.

The UDP length field includes the bytes for both the UDP header and the UDP payload.

◆ UdpLength() [2/2]

uint16_t Dwm::Ipv4UdpHeader::UdpLength ( uint16_t udpLength )

Sets and returns the UDP length in host byte order.

The UDP length field includes the bytes for both the UDP header and the UDP payload.

◆ Write() [1/3]

ssize_t Dwm::Ipv4UdpHeader::Write ( int fd ) const

virtual

Writes the UDP header to a file descriptor.

Returns the number of bytes written on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::Writable.

◆ Write() [2/3]

size_t Dwm::Ipv4UdpHeader::Write ( FILE * f ) const

virtual

Writes the UDP header to a FILE.

Returns 1 on success, 0 on failure.

Implements Dwm::Writable.

◆ Write() [3/3]

int Dwm::Ipv4UdpHeader::Write ( gzFile gzf ) const

virtual

Writes the UDP header to a gzFile.

Returns the number of bytes written on success (should be equal to StreamedLength()), -1 on failure.

Implements Dwm::GZWritable.

The documentation for this class was generated from the following file:

DwmIpv4UdpHeader.hh
