Encapsulates an ICMP echo request. More...

#include <DwmIpv4IcmpEchoRequest.hh>

Inheritance diagram for Dwm::Ipv4IcmpEchoRequest:

[legend]

Collaboration diagram for Dwm::Ipv4IcmpEchoRequest:

[legend]

Public Member Functions
	Ipv4IcmpEchoRequest ()
	Default constructor.

	Ipv4IcmpEchoRequest (uint16_t id, uint16_t seq, const std::string &data)
	Construct from the given identifier `id`, sequence number `seq` and `data`. More...

	Ipv4IcmpEchoRequest (uint8_t *buf, uint16_t len)

uint16_t	Identifier () const
	Returns the identifier.

uint16_t	Identifier (uint16_t id)
	Sets and returns the identifier.

uint16_t	SequenceNumber () const
	Returns the sequence number.

uint16_t	SequenceNumber (uint16_t seq)
	Sets and returns the sequence number.

std::string	Data () const
	Returns the data as a string.

std::string	Data (const std::string &data)
	Sets the data to the given `data`. Returns the data.

template<typename T >
bool	SetData (const T &data)
	Sets the data to the given `data`. More...

template<typename T >
bool	GetData (T &data) const
	Copies the enacapsulated data into `data`. More...

bool	SendTo (Socket &s, const Ipv4Address &destination)
	Sends the echo request to the given `destination` via the given Socket `s`. More...

Public Member Functions inherited from Dwm::Ipv4IcmpMessage
	Ipv4IcmpMessage ()
	Default constructor.

	~Ipv4IcmpMessage ()
	Destructor.

uint8_t	Type () const
	Returns the ICMP message type.

uint8_t	Type (uint8_t type)
	Sets and returns the ICMP message type.

uint8_t	Code () const
	Returns the ICMP message code.

uint8_t	Code (uint8_t code)
	Sets and returns the ICMP message code.

uint16_t	Checksum ()
	Returns the ICMP checksum.

void	SetChecksum ()
	Computes and sets the checksum.

std::istream &	Read (std::istream &is, uint16_t len)
	Reads the message of length `len` from an istream. More...

std::ostream &	Write (std::ostream &os) const
	Writes the message to an ostream. Returns the ostream.

ssize_t	Read (int fd, uint16_t len)
	Reads the message of length `len` from a file descriptor. More...

ssize_t	Write (int fd) const
	Writes the message to a file descriptor. More...

size_t	Read (FILE *f, uint16_t len)
	Reads the message of length `len` from a FILE. More...

size_t	Write (FILE *f) const
	Writes the message to a FILE. Returns 1 on success, 0 on failure.

int	Read (gzFile gzf, uint16_t len)
	Reads the message of length `len` from a gzFile. More...

int	Write (gzFile gzf) const
	Writes the message to a gzFile. More...

int	BZRead (BZFILE *bzf, uint16_t len)
	Reads the message of length `len` from a BZFILE. More...

int	BZWrite (BZFILE *bzf) const
	Writes the message to a BZFILE. More...

uint32_t	StreamedLength () const
	Returns the number of bytes that would be written if we called one of the Write() members. More...

bool	operator== (const Ipv4IcmpMessage &msg) const
	operator ==

Public Member Functions inherited from Dwm::Writable
virtual	~Writable ()
	Destructor.

Public Member Functions inherited from Dwm::GZWritable
virtual	~GZWritable ()
	destructor

Additional Inherited Members
Protected Member Functions inherited from Dwm::Ipv4IcmpMessage
void	Free ()

void	Allocate (uint16_t len)

void	Reallocate (uint16_t len)

Protected Attributes inherited from Dwm::Ipv4IcmpMessage
std::pair< uint16_t, uint8_t * >	_data

bool	_ownData

Detailed Description

Encapsulates an ICMP echo request.

Constructor & Destructor Documentation

◆ Ipv4IcmpEchoRequest()

Dwm::Ipv4IcmpEchoRequest::Ipv4IcmpEchoRequest	(	uint16_t	id,
		uint16_t	seq,
		const std::string &	data
	)

Construct from the given identifier id, sequence number seq and data.

Member Function Documentation

◆ GetData()

template<typename T >

bool Dwm::Ipv4IcmpEchoRequest::GetData ( T & data ) const

inline

Copies the enacapsulated data into data.

Note that data must be readable via Dwm::IO, which emans it must be a type supported by Dwm::IO or a type derived from Dwm::Readable. Returns true on success, false on failure.

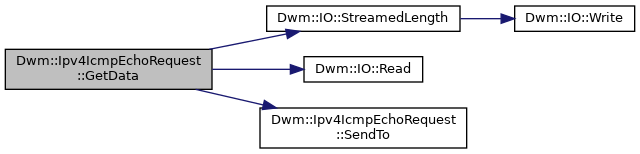

Here is the call graph for this function:

◆ SendTo()

bool Dwm::Ipv4IcmpEchoRequest::SendTo	(	Socket &	s,
		const Ipv4Address &	destination
	)

Sends the echo request to the given destination via the given Socket s.

Returns true on success, false on failure.

◆ SetData()

template<typename T >

bool Dwm::Ipv4IcmpEchoRequest::SetData ( const T & data )

inline

Sets the data to the given data.

Note that data must be writable via Dwm::IO, which emans it must be a type supported by Dwm::IO or a type derived from Dwm::Writable. Returns true on success, false on failure.
