Sport Mode Mini Module PCB

Last Modified May 7, 2011

Home > Daniel > M Roadster > M Roadster Upgrades > /Daniel/MRoadster/Upgrades/SportModepcb.php

Here's the PCB design. The dimensions are 1.2" x 1.7".
SportModeMini.brd

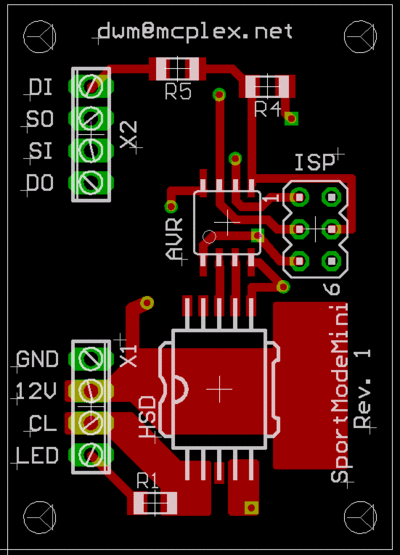

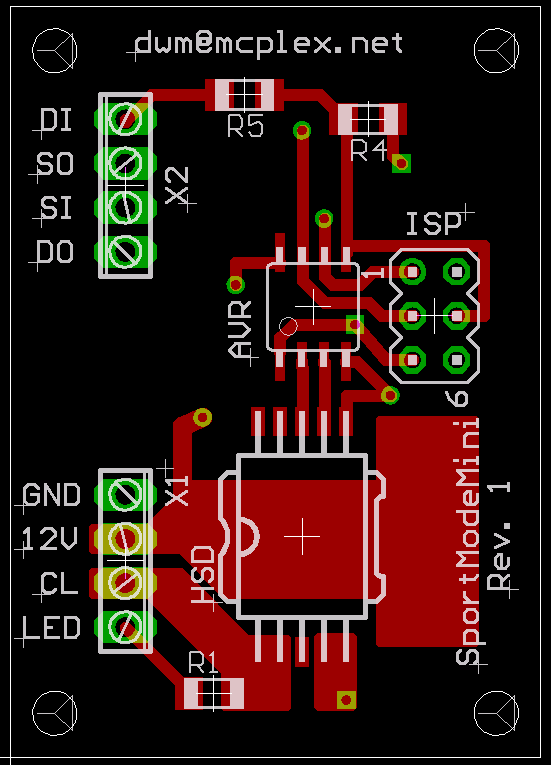

Top

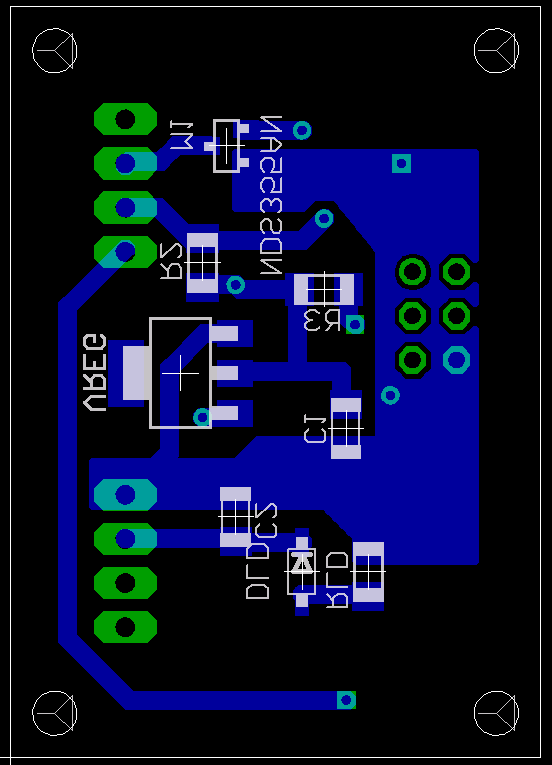

Bottom

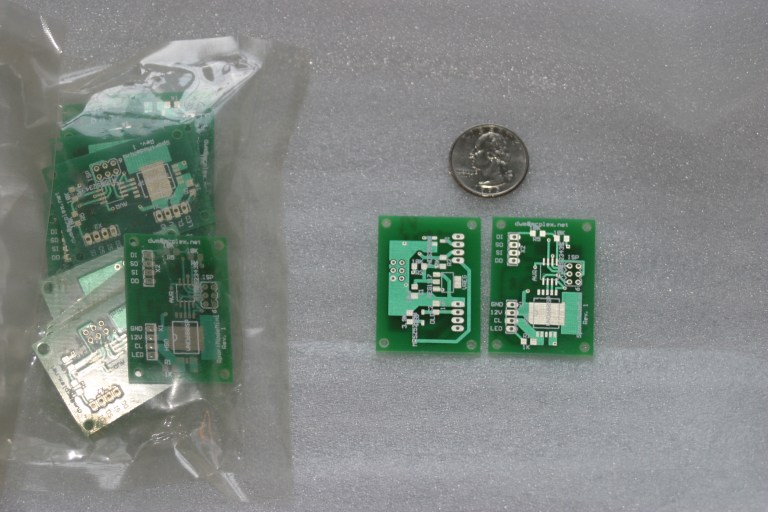

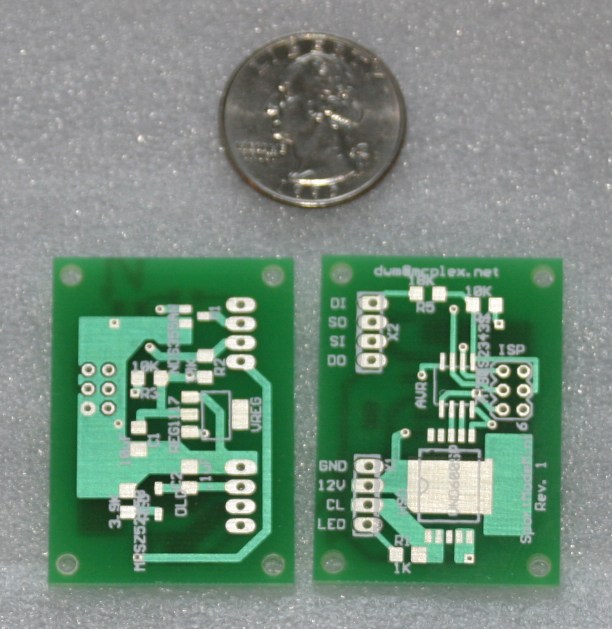

And here's what the first batch looked like from the PCB shop. Unfortunately they silked more layers than I requested, which means there's silkscreen on a few pad areas. Not a big deal, but I suspect I'll either delete those layers in the board files I send them, or just skip silkscreen on the next batch (if there is a next batch).
